Exchange the presscrew is very easy look at :
Reversible press tube, provides even wear and longer service-life.
For pressing big seeds. or very light seeds in m3. Animation video
Press screw part 2002 low cost. you can change 180 angle and worn again Animation Video
See Oil press in works
realtime in Finland
5 units Type 90-2 Double Double run night and day, months after months . Over 33 000 hours á oil press running. http://rypsipuristamo.no-ip.org/
Steel in parts
SIS 2172 in presstube C Max 0.20%
Si Max 0.55%
Mn Max 1.60%
P Max 0.045%
S Max 0.045%
SIS 2511 in presscrew C 0.13 - 0.18%
Si 0.15 - 0.40%
Mn 0.70 - 1.10%
P Max 0.035%
S Max 0.050%
Cr 0.60 - 1.00%
Ni 0.80 - 1.20%
Mo Max 0.10%
Press tubes are inexpensive. Therefore several press tubes can be kept
in stock for different types of seed.

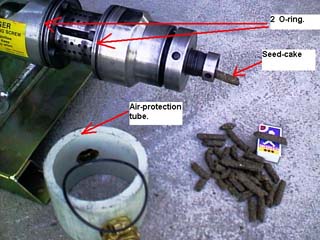

Exchangeable nozzles. Simple design, no threads. Low price. Seed cakes of the pellet type.
No threads in the press tube which could otherwise become clogged up with dried linseed oil and leftover seeds,
making the press tube difficult to dismantle. Having no threads also means it is easier to assemble without having
to worry about seeds getting caught in threads.
Transparent inlet pipe provides the best view. A sensor can be mounted in the inlet pipe to the hopper.
A Watch Guard can mount on the oil-press.
The bearing housing has standard bearings which means low cost ball bearings.
Both slits and hole for the oil in press-tube less risk for stop.'
Big slits in press-house, less risk for rotation and wears.
Overload protection is provided by means of torque limit.
The variator is by means of a static frequency changer, which means no mechanical wear, etc.
Soft start, the rotation speed rises to the motor on-speed gradually without jerking.
A toothed coupling between the gears and the oil press provides a soft power transition.
Reversing option, useful when you want to dismantle the press head, etc., and if a foreign object becomes lodged in the unit.
A display shows amps, rotation speed, volts and Hz.
Fault location capability via the display, the four most recent faults triggered are stored.
Overheating protection 140 oC on the press head. Low current, 24 volts, in the cable, for safety purposes.
A heating collar with a thermostat provides good starting up without the need to change nozzles or to heat by using an external heat source, for safety reasons etc.
Heat is provided via the heated collar; useful for pressing very cold seed in the winter.
The robust electrical cabinet complies with CE and EMC norms.
Screened electrical cables. The sheet steel cabinet protects the electrical components. A sighting glass allows inspection without opening a cover.
There is room for an instruction book etc. in the electrical cabinet.
There is an earth fault contact breaker in the electrical cabinet for safety purposes.
There are fuses in the electrical cabinet.
The press is divided into three parts: the electrical cabinet, a pressing unit and the motor gear unit. This facilitates servicing.
Standard components, manufactured in the West, are easy to service and can be obtained quickly.
The oil presses are not heavy. Type 55 weighs 62 kg. Their small size means that the press is easy to position
